Features & Benefits
- The ADAS Bay Max is a purposefully built flush-mount scissor car lift, engineered to perform mechanical repair, wheel alignment, and 360 ADAS calibration in a single standard alignment bay space.
- The heavy-duty rolling jack beam, and the industry’s first flush-mount H Shape and table riser configuration allow for safer and more efficient wheel alignments, and when recessed into the floor the same space becomes a flat 360 ADAS calibration environment.
- Compatible with passenger cars and light trucks, this premium hydraulic lift is available in 12,000 and 14,000-pound capacity versions, both with front and rear opening runways, flip-down wheel stops, and low angle approach ramps for easier access. The ADAS Bay Max also features stainless steel front radius plates and rear slip plates and turn plate pocket protectors for more effective paint protection.
- Double-wide runways with built-in “Z” rails are structurally stronger and eliminate sagging or flexing; delivering far more accurate alignments. The stainless-steel air lock release system ensures a longer life and less maintenance, while the industrial-grade Krown rust proofing and premium double baked powder coat finish provide ultimate corrosion protection.
- Built-in runway air tire inflation kits at each wheel, shatterproof undercarriage LED lighting with automatic shut off, and an enclosed console power control unit are also standard.
- The Autel ADAS Bay Max is Made in North America and ALI Certified and includes a one-year limited warranty on lift parts, five-year warranty on hydraulic jack parts, one-year warranty on lift table parts and hydraulic components, 90-days on front turn plates, rear slip plate and bearings, and air kit and LED lighting kits.
- Flush-mounted Hydraulic Alignment Scissor Lift with recessed rolling Jacking Beams and Table Riser
- Unique design that enables Mechanical Repair, Wheel Alignment, and 360 ADAS Calibration within a single bay space
- 12K Lift with two 6K capacity Jacking Beams
- Stainless Steel Front Radius Plates and Rear Slip Plates
- Front and Rear-opening Runways with Flip Down Wheel Stops
- 26"-wide space saving Runways
- Built-in Runway Air Tire inflation Kit at each wheel
- Auto shut off shatterproof LED Lighting Kits

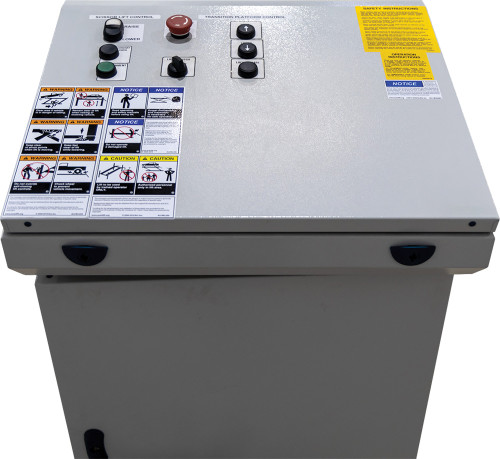

- Enclosed Console Control Power Unit
- Premium Double Baked Powder Coating Finish and Industrial-grade Rust Proofing
- 100% North American made and ALI Certified
