Features & Benefits

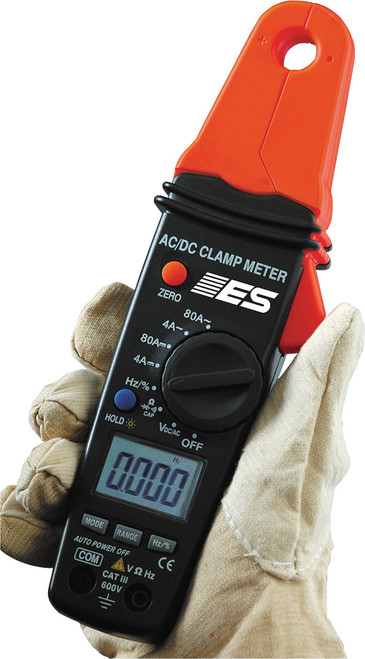

With the capability of measuring down to 1 milliamp (.001A), the #687 is a great tool for all low current applications. Especially for diagnosing parasitic drains! Clamp opening is large enough to fit over most negative battery cables. Applications: fuel injectors, fuel pumps, electric motors, battery drains, charging systems.
Features:
- 35 Test Ranges
- 10 Test Functions
- Auto Power Off
- Auto-Ranging
- Data Hold
- Continuity Beep
- Overload Protection
- Clamp opening 1/2 inch
- 9 Volt Battery Included
- Carrying Case included
TEST RANGES:
- DC Amps: 0-4A, 80A
- AC Amps: 0-4A, 80A
- DC Volts: 0-400mV, 4V, 40V, 400V, 600V
- AC Volts: 0-400mV, 4V, 40V, 400V, 600V
- Ohms: 0-400, 4k, 40k, 400k, 4M, 40M
- Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 5MHz, 10MHz
- Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
- Duty Cycle: 0-.5%-99.0%
- Diode: Diode Test
- Continuity: Audible Beep
