Features & Benefits
Features:

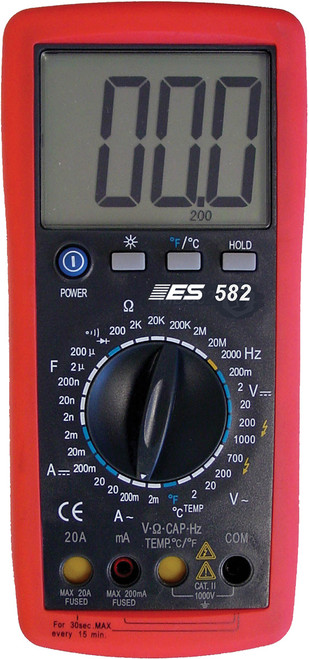

- Huge 2 inch LCD Display, easy to see from across the room
- Display is backlit for use in Dark Spaces
- Amp Shutters prevent mistaken operation, improve safety and saves fuses by blocking unused amp jacks!
- Great Meter for Electrical Trouble Shooting
- 11 Test Functions, 33 Test Ranges
- Measures Temp in Both F and C, Probe Included
- Desirable 20 Amp Test Range
- Modern Design, the Protective Holster is Built-In
- Data Hold

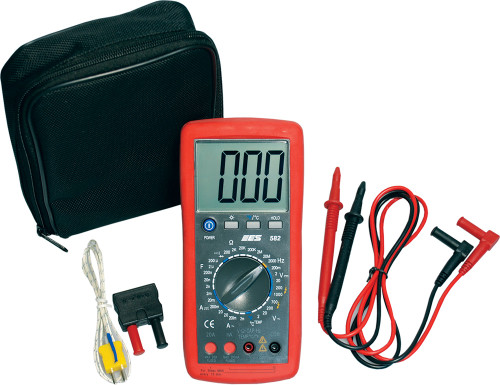

- Carrying case, Test leads, Temp probe, Instructions and Battery included
Test functions:
- AC/DC Voltage
- Resistance
- AC/DC Current
- Temperature in C and F
- Frequency (Hz)
- Capacitance
- Continuity
- Diode Test
Test Ranges:
- DC Volts: 0-200mV, 2V, 20V, 200V, 1000V
- AC Volts: 0-2V, 20V, 200V, 700V
- DC Amps: 0-2mA, 20mA, 200mA, 20A
- AC Amps: 0-2mA, 20mA, 200mA, 20A
- Ohms: 0-200, 2k, 20k, 200k, 2M, 20M,
- Capacitance 0-2nF, 20nF, 200nF, 2uF, 200uF
- Frequency 0-20kHz
- Temperature -4F to 1400F, -20C to 760C
- Continuity Continuity Beep - under 50 Ohms Diode Diode Test
