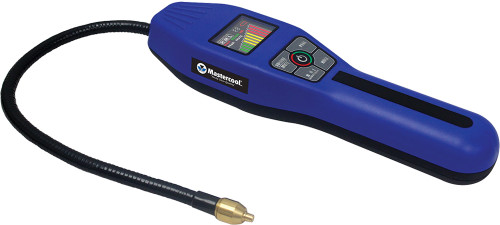

PG405 - INTELLASENSE REFRIGERANT LEAK DETECTOR FOR COMBUSTIBLE GASES, HYDROGEN AND ALL REFRIGERANTS. WORKS WITH R1234YF, R32 AND R410A.

Brand: Mastercool
SKU: MTC-55800
MPN: 55800

Features & Benefits

  • WAIT: This indication flashes whenever the unit is in the wait mode. This could occur whenever the unit is turned on or interference is detected
  • READY: This indication appears when the unit is ready for use
  • INT: This indication appears whenever the microprocessor detects conditions that are not suitable for reliable leak detection. Excessive wind blowing, blocked probe (no air flow), burned out fan, or a missing or defective sensor that needs to be replaced
  • BATTERY SYMBOL: When the battery symbol becomes illuminated this is an indication that the battery is low and needs to be replaced
  • H – M – L: High, Medium and Low sensitivity ranges will be displayed accordingly based on the selection made on the keypad
  • SIGNAL LEVEL BARS: There are 10 vertical signal level bars on the display corresponding to the level of signal detected by the unit
  • ERROR SIGNALS: E1 through E9 indicates diagnostic signals
  • SENSITIVITY:
  • HIGH ≥ 0.15 oz/yr (4.25 g/yr)
  • MEDIUM ≥ 0.25 oz/yr (7 g/yr)
  • LOW ≥ 0.5 oz/yr (14 g/yr)
  • PROBE:
  • Intelligent tip design that senses the condition of the environment, to eliminate the potential of false alarms.
  • Flexible 16” probe for difficult to reach locations
  • DISPLAY:
  • Progressive LCD with vertical bars corresponding to the magnitude of the detected leak
  • Visual indication of the selected sensitivity range
  • REFRIGERANTS:
  • Detects all refrigerants (CFC’s, HCFC’s, & HFC’s)
  • Unit has been tested and approved to work with R1234yf as well as R32 and R410a
  • SENSOR LIFE: 2000 hours
  • OPERATING TEMPERATURE RANGE: 0 to 140˚F
  • POWER: Two (2) D Batteries
  • BATTERY LIFE: 60 hours continuous use
  • WEIGHT: 1 lb. 8 oz
  • “Super Sensitive Function” allows the unit further sensitizing beyond the standard settings for locating small leaks with gases such as R1234yf and R407C
